Type of plant:

Aeolian

Location

Region: Abruzzo
Province / district: L'Aquila
Municipality: Pescina

Technical data

Nominal power of 12.000,00 kW
Expected average production: 22.500.000 kWh

  • WTE 2
  • WTE 2
  • WTE 2
  • WTE 2
  • WTE 2

Generation units

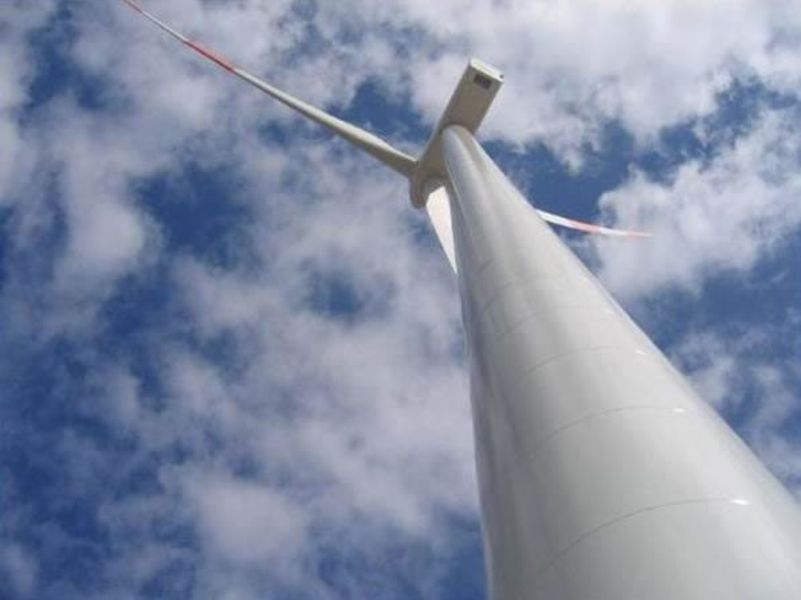

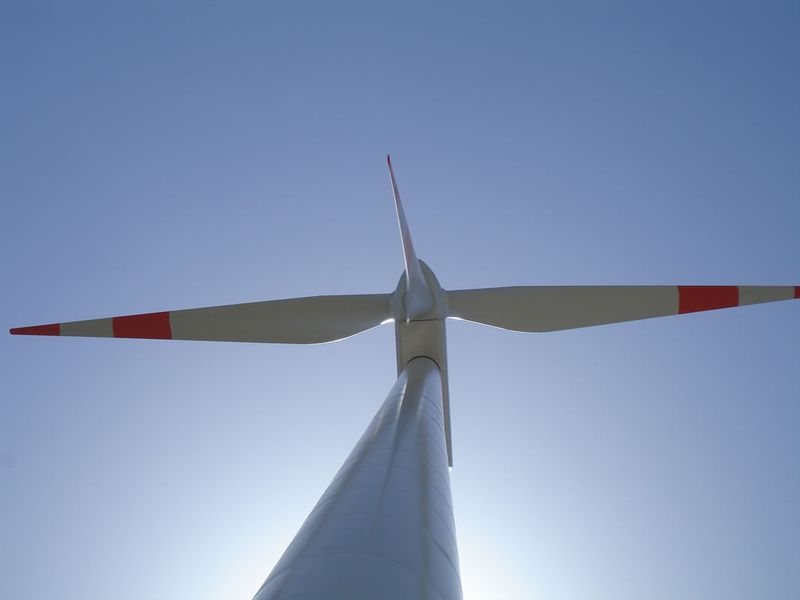

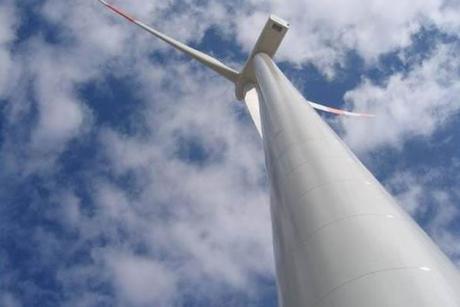

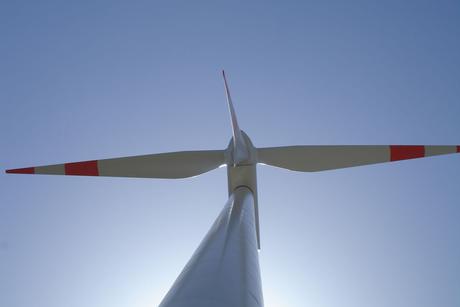

  • 6 Vestas V80-2MW wind turbine generators
  • 1 20/150kV 25/33 MVA transformer

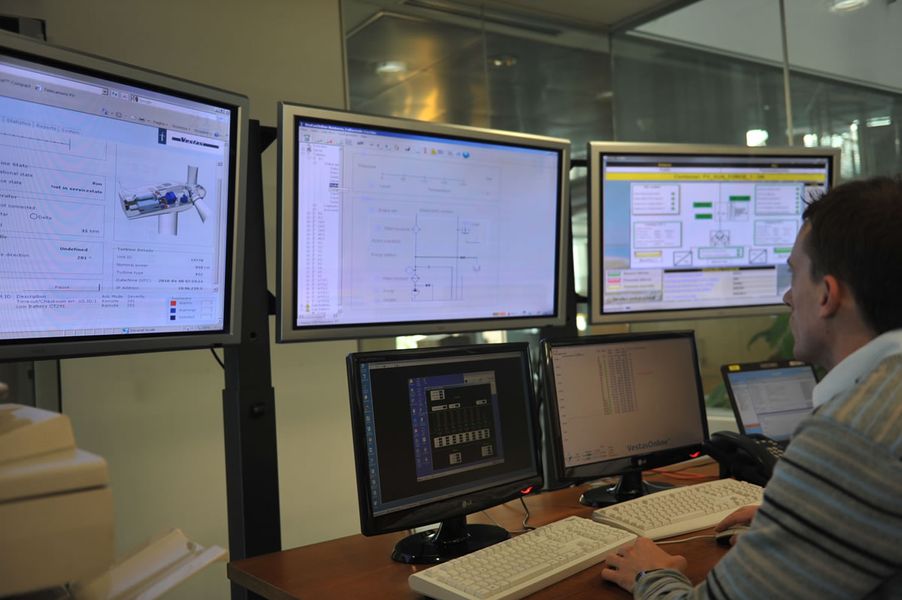

Surveillance and alarm system

  • SCADA integrated Vestas communication platform
  • local or remote control through modem and communication bus
  • electric production data logger and weather station
  • local video-surveillance and in connection with the operational control unit

Description

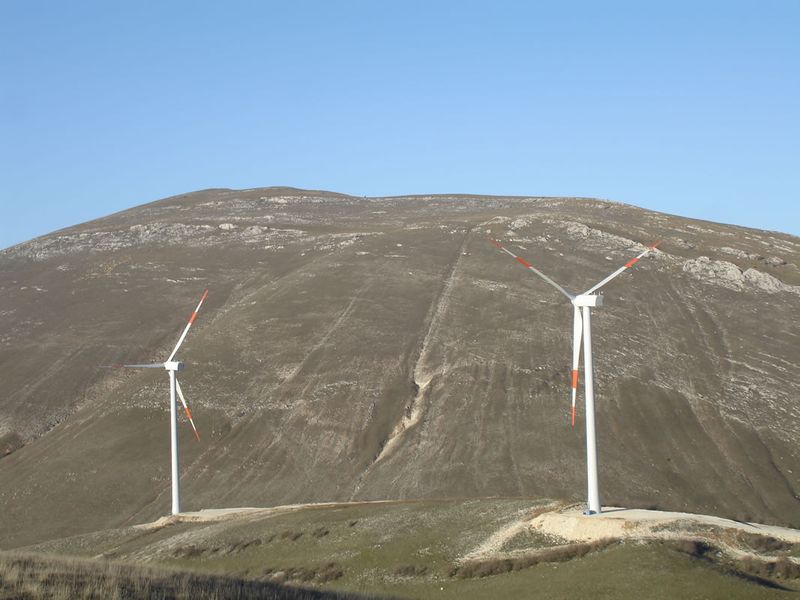

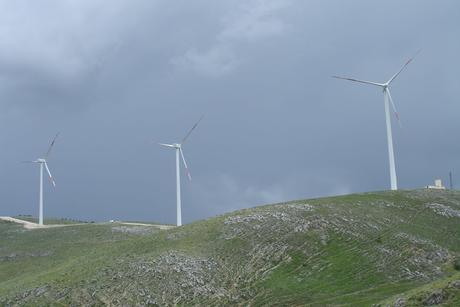

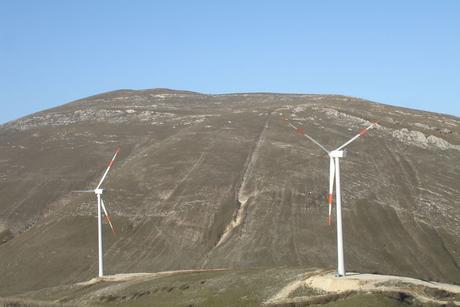

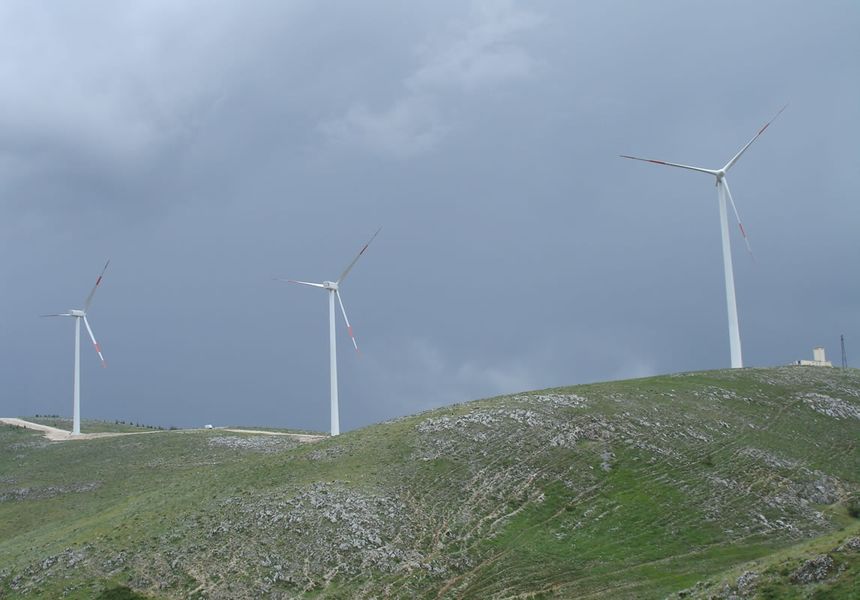

The wind farm was built on top of Colle della Forchetta (Forchetta Hill) at an approximate altitude of 1,100 m with wind turbine generators of 67 m in height and rotor blades of 80 m. The farm exploits wind from the nearby Forca Caruso pass. The produced energy is sent at a voltage of 20 kV along underground cable ducts, and raised to 150 kV near the Collarmele electrical substation.
